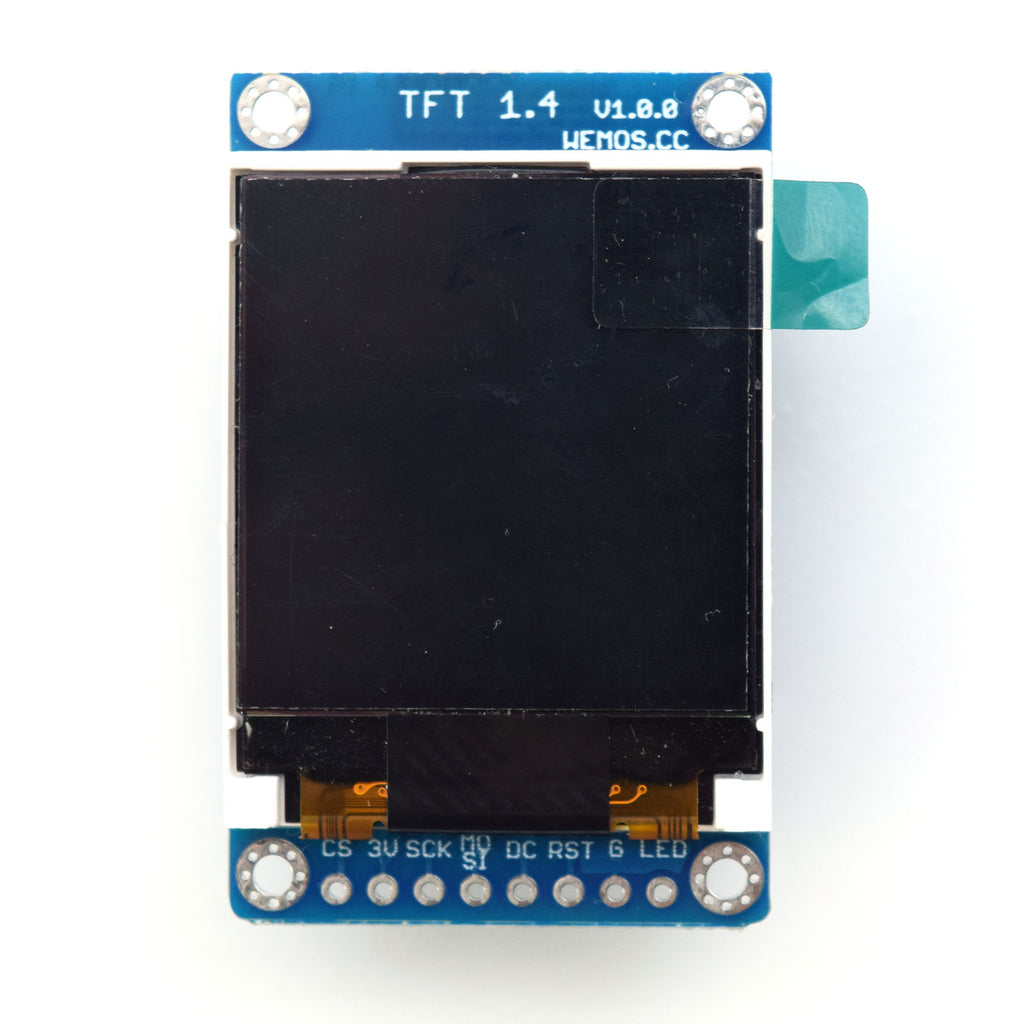

WEMOS TFT 1.4" 128X128 SPI LCD ST7735S

The WEMOS TFT 1.4 inch display shield is a 18-bit (262,144) color screen with 128x128 pixel resolution with SPI interfaces.

The shield can use three different interfaces for connection:

1. WEMOS D1 mini Shield Connector
   Compatible with WEMOS D1 mini, plug in WEMOS D1 mini, Shield and Base
2. SH1.0-10P Connector
   Using the 10P TFT Cable, connect to the WeMos SPI shield or to the ESP32 D32 Pro
3. Via the 8 Pin 2.54mm Connector

Features

• 1.44” diagonal LCD TFT display
• 128×128 resolution, 18-bit (262,144) color
• Driver IC: ST7735S
• Compatible with WEMOS D1 mini
• 3 kinds of connection

Documentation

• Get started with TFT 1.4 Shield
• Schematic v1.0.0
• Dimension
