Kitronik Electronic Dice Project Kit V2.0

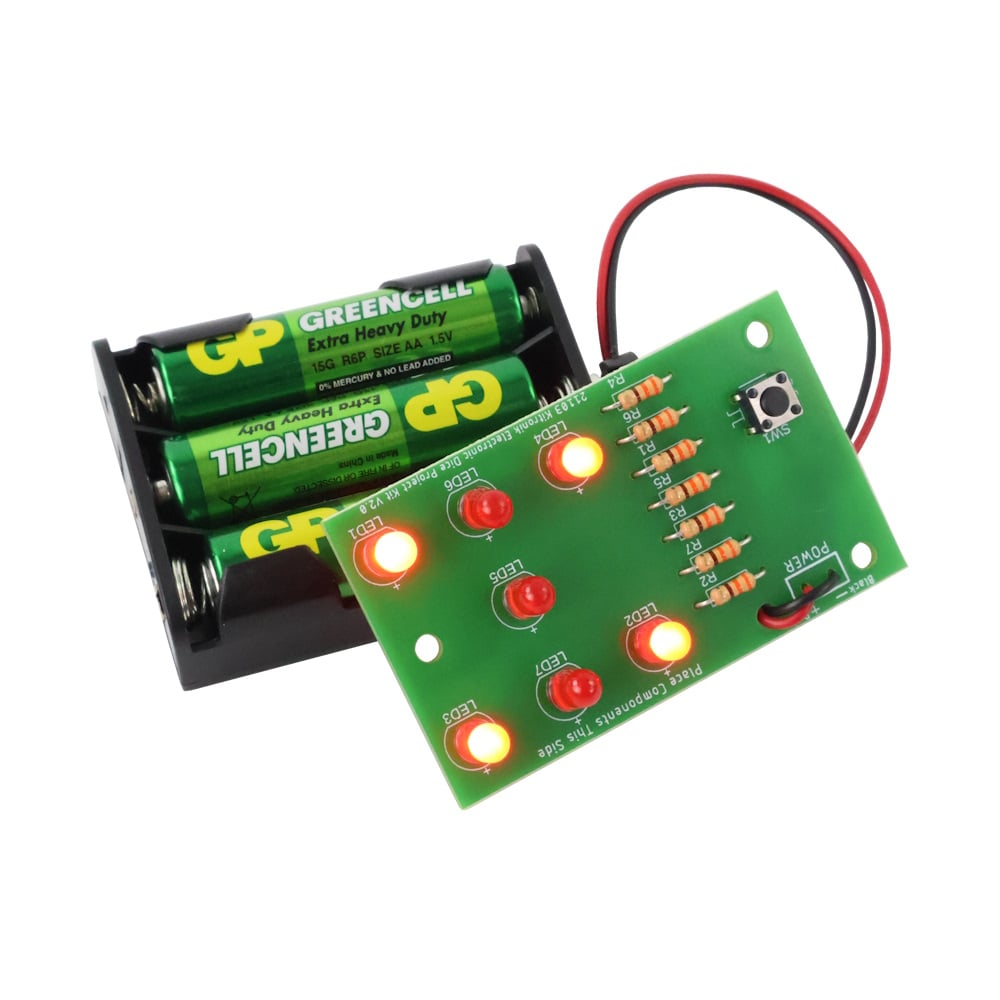

This is the most recent version of the Kitronik Electronic Dice Project Kit, it uses seven LEDs to display a random dice value each time the start button is pressed. This new version features a surface-mount microcontroller that is pre-soldered to the PCB, removing the need for students to solder an IC by hand and making the build faster, cleaner, more reliable, and much better value for money.

The tactile start switch mounts directly to the PCB, allowing the dice to be used exactly as built or easily integrated into a custom enclosure. The project remains an ideal introduction to basic electronics, soldering skills, and microcontroller-driven outputs.

Features:

• Random electronic dice generator.
• Seven-LED display with clear output pattern.
• Compact PCB layout designed for classroom use.
• Surface-mount microcontroller pre-mounted to the PCB, no IC soldering required.
• Simple, reliable build suitable for beginners.

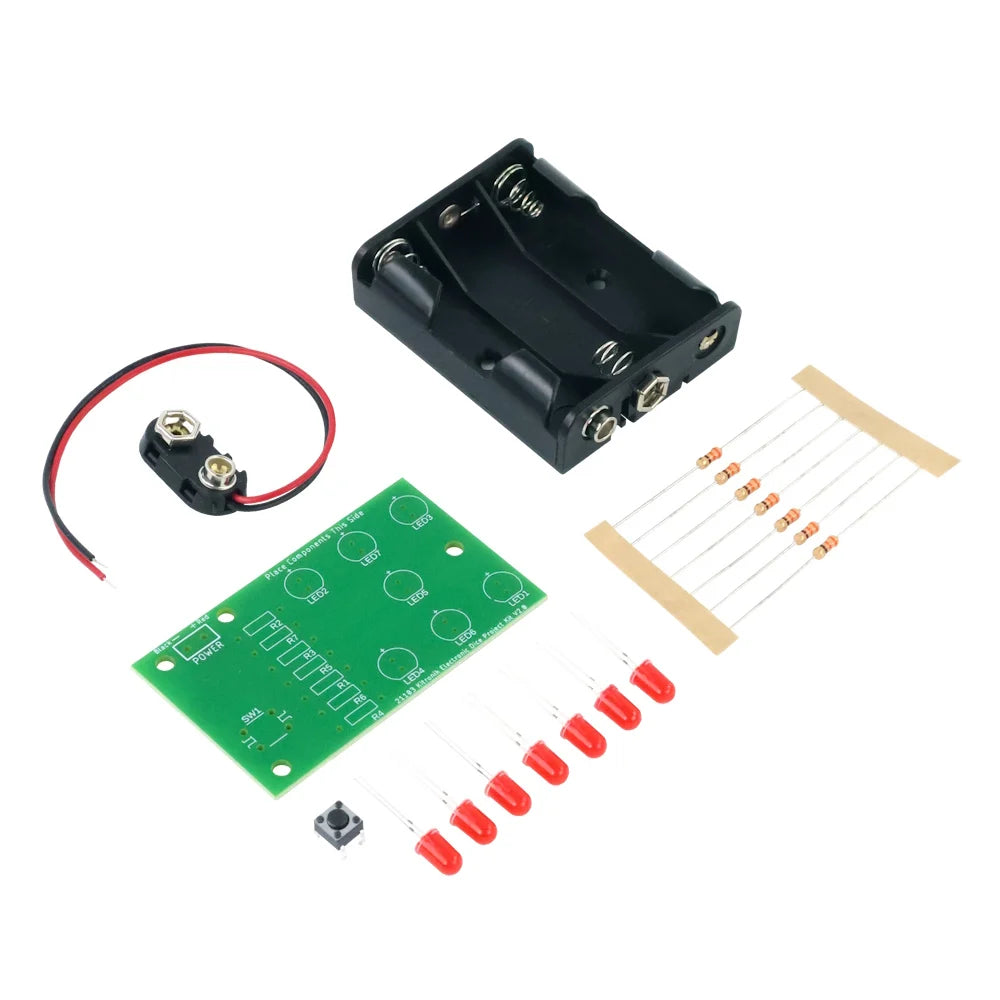

Contents:

• 1 × PP3 Battery Clip Lead (Heavy Duty)
• 1 × 3×AA Battery Holder with Clip
• 7 × Red 5mm Diffused LEDs (275mCd)
• 7 × 330Ω Resistors
• 1 × 6mm PCB-mount Tactile Switch
• 1 × Electronic Dice Project Kit PCB (with pre-mounted SMT microcontroller)

Dimensions:

• Length: 66mm
• Width: 39mm

Requires:

• 3 × AA Batteries
• Soldering Iron
• Solder
• Wire Cutters

Resources:

• Essential information
• Teaching Notes
