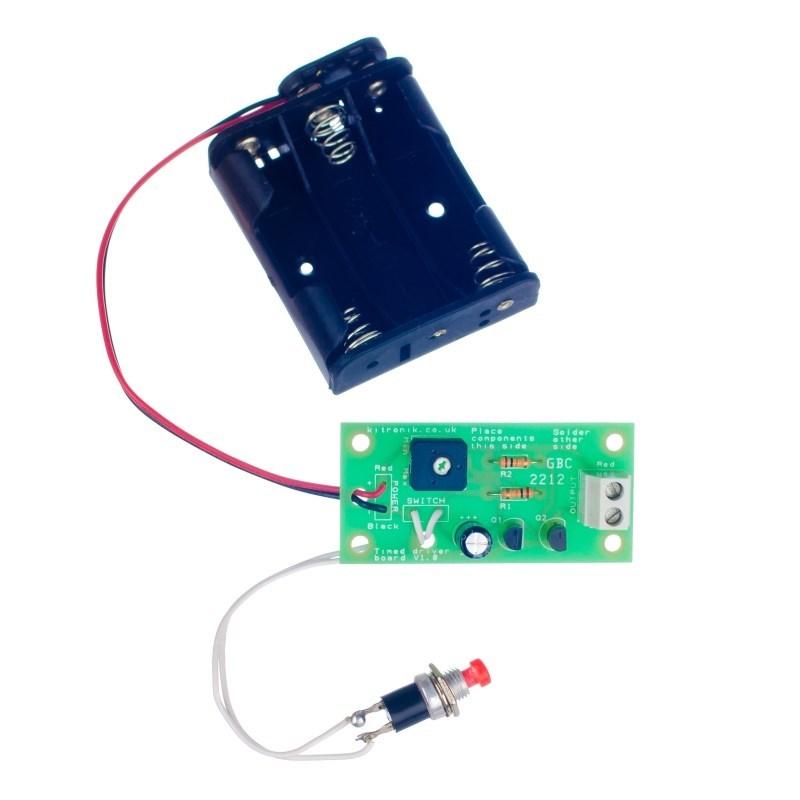

Kitronik LED Picture Frame Kit

The Kitronik LED Picture Frame Kit is a soldering and electronics project for making a picture frame that lights up when a button is pressed. Students can choose the LEDs (available separately) and set the lighting time from a few seconds to 30 minutes, combining practical circuit building with a creative finished project. Kitronik provides essential information and teaching resources to support lesson preparation.

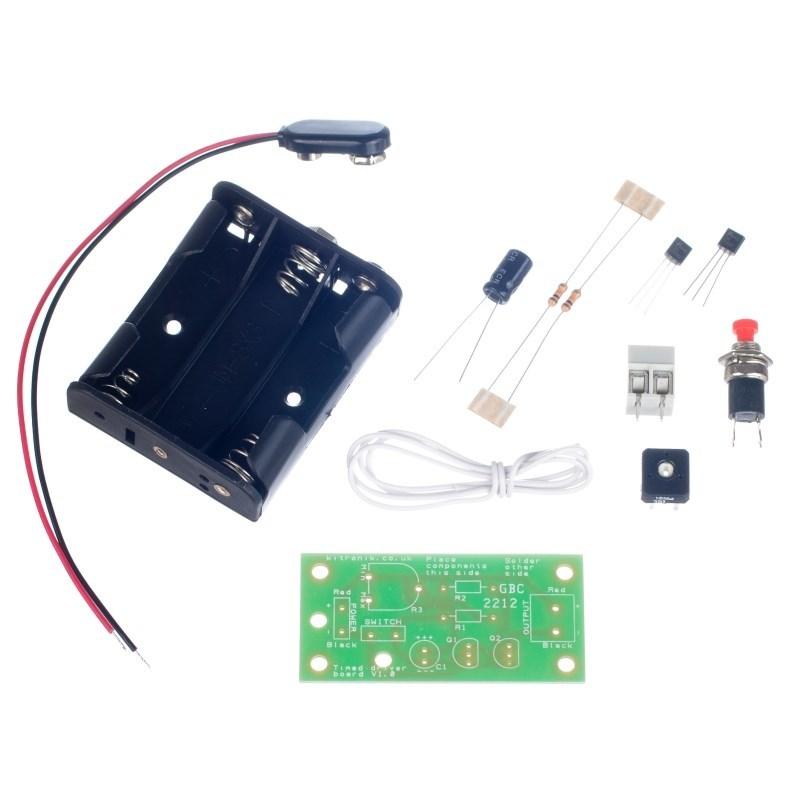

This kit includes:

• 1 x PP3 Clip lead
• 1 x Battery holder (3x AA)
• 1 x Terminal block (2 way)
• 1 x Push to make switch
• 1 x Capacitor, electrolytic, 16V, 220uF
• 1 x 10M Pot
• 2 x 10K resistor 5%
• 2 x N channel FET (2N7000)
• 1 x 0.5 metre length of single core wire
• 1 x Picture frame LED driver PCB

PCB dimensions: 58mm x 28mm.

This kit is supplied as a pack of parts and requires soldering.

Click here to download the essential information

Click here to download the full teaching resources

Selecting LEDs for using with the circuit.

The circuit can be used with a variety of LEDs. Below are a selection of LEDs that can be used. Also listed is the current limit resistor that will be required if four LEDS are used.
