Touch pHAT

Six touch-sensitive buttons to use for whatever your heart desires, with added LEDs (did you expect anything less?)

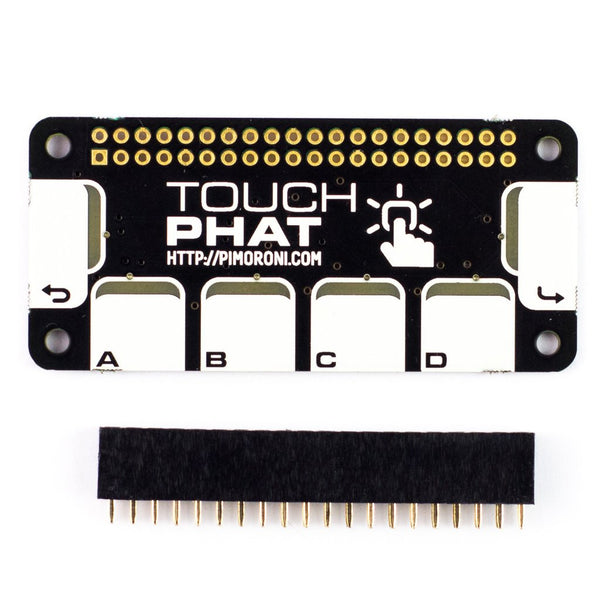

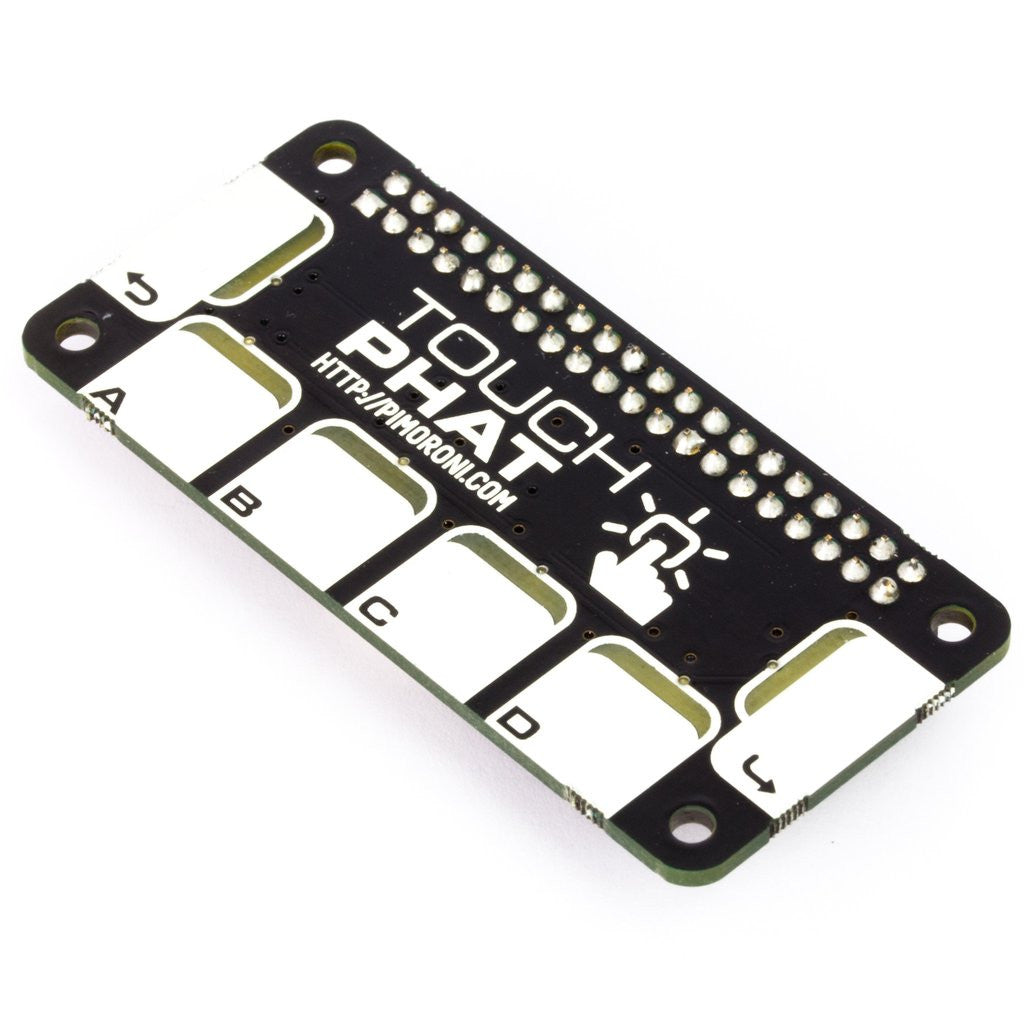

Touch pHAT has six capacitive touch buttons, each with a bright white LED, designed to be completely agnostic about what they're used for. You can even use a dry erase pen to write on the pads to label their function.

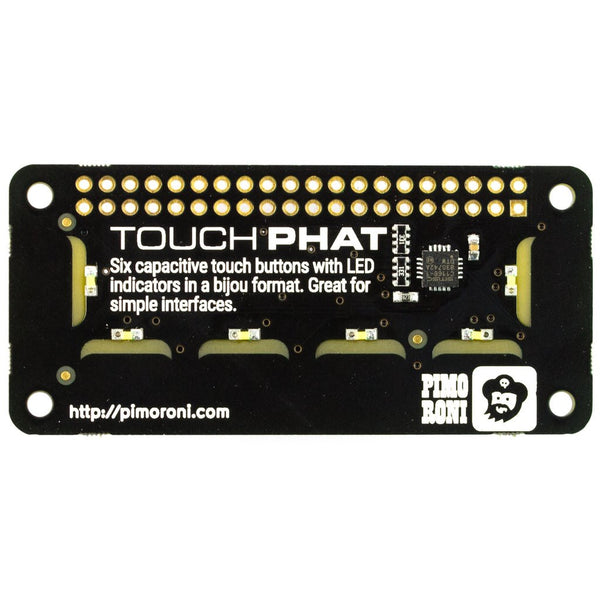

It uses the CAP1166 capacitive touch and LED driver chip. The LEDs have been under-mounted and shine through exposed sections of the PCB to give a pleasing yellow-green glow and a completely smooth top surface!

Use Touch pHAT as a controller for your robot, a controller for your Mote lights, a tiny drum machine, or use it to build a simple game where you have to taps the buttons to repeat the sequence of lights that just flashed.

Features

• Six capacitive touch buttons
• Six bright white under-mounted LEDs
• Microchip CAP1166 capacitive touch and LED driver chip
• Touch pHAT pinout

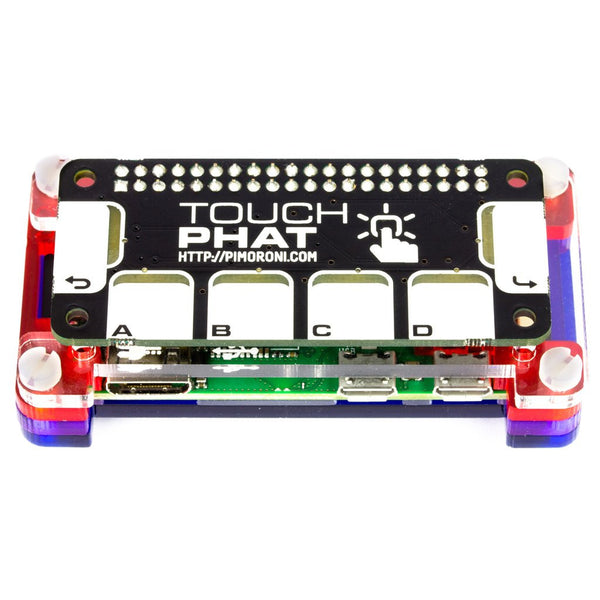

• Compatible with Raspberry Pi 3, 2, B+, A+, Zero, and Zero W
• Python library
• Female header requires soldering

Software

Pimoroni's handy one-line installer will install the Touch pHAT Python library for you. We've included a couple of examples too, to show off what you can do with Touch pHAT.
