Heelight Core

Heelight Core is a smart sound sensor that can recognize up to 500+ digital voice commands.

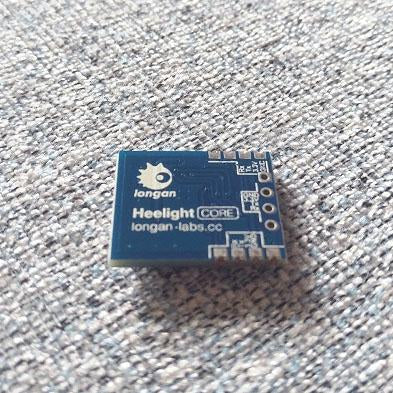

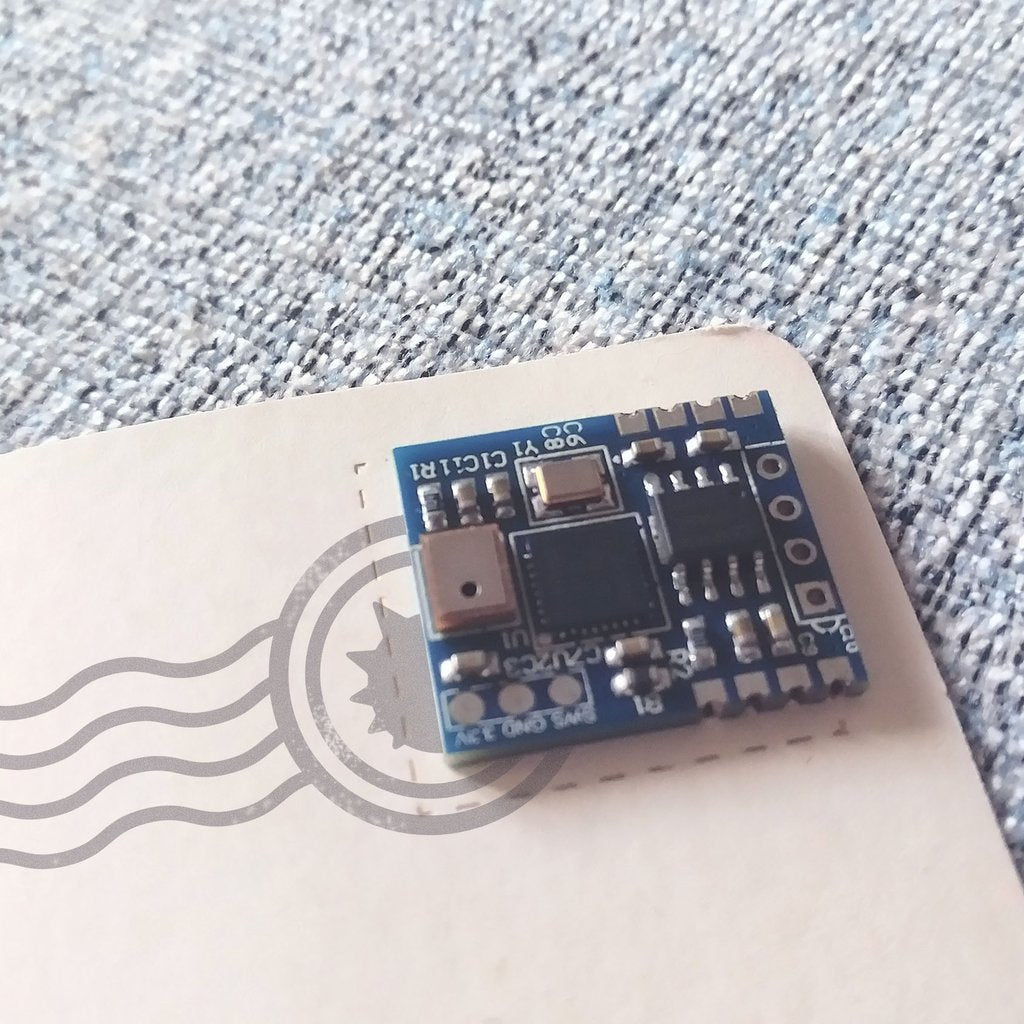

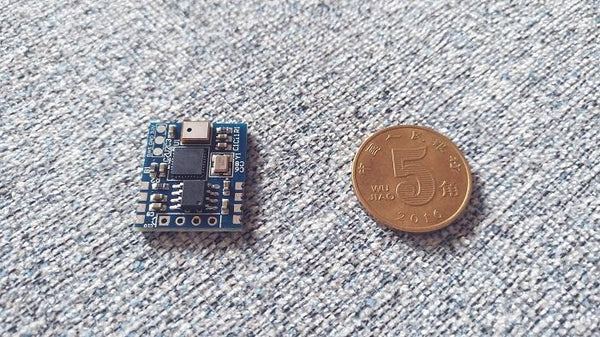

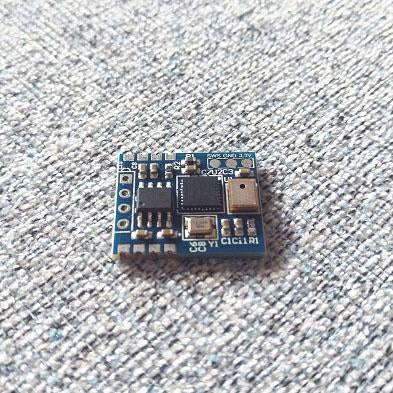

Heelight Core is tiny, only 20mm*17mm. By using the design of the stamp hole, you can easily integrate Heelight core into your product. We also provide the component library in Eagle format. And there is a 4-pin header, which can be inserted into a bread board directly to build a prototype.

So what are the advantages of digital sound control?

• The operation is simple, as long as a device can make a sound, you don't need to connect WiFi, or connect Bluetooth
• There is no compatibility issues. Compare to Bluetooth, WiFi, zigbee, sound is more common

Features

• UART output (default 9600)
• Android/iOS APP
• 500+ sounds available
• 3.3V working voltage
• Small Size
• Works with bread board
• Easy to be integrated to PCB

APP

• Android
• iOS
• Wep App (Open it with your smart phone browser)

Reference

• How to USE
• Heelight Relay

Support

Please feel free to contact joney.sui@longan-labs.cc if you need tech support.

Reference

• Eagle Library of Heelight Core
• 500 sound commands
• Heelight Relay
